Configure Smart Card Logon on Windows Domains

Introduction

These Windows Domain configuration guides will help you configure your Windows network domain for smart card logon using PIV credentials.

There are many useful pages and technical articles available online that include details on configurations and using generic smart cards. The information presented here addresses common questions and configurations specific to the U.S. federal government, PIV smart cards, and U.S. federal civilian agency certification authorities.

Pre-Launch Checklist

Check the following items before reviewing these network guides and lessons learned:

1. Users have PIV credentials and PIV card readers.
2. You are using Microsoft Active Directory to manage your Windows network.
3. Domain Controllers are running Microsoft Windows Server 2019 or newer.
4. User workstations are joined to your network and are Windows 10 or newer.

Configuration Checklist

There are five configuration categories to review with your colleagues. All five include steps that must be completed; it’s best to review and complete the configuration categories in this order:

1. Network Ports and Protocols
2. Domain Controllers
3. Trust Stores
4. Account Linking: Associating PIV credentials with User Accounts
5. Group Policies and Enforcement

There are five additional guides:

1. Network Tuning
2. Local Certification Authority
3. Authentication Assurance

We want to add additional information for installing Online Certificate Status Protocol (OCSP) services, addressing common errors and troubleshooting, and configuring for other operating systems.

Submit an Issue to identify information that would be helpful to you, or consider contributing a page to these guides with your lessons learned.

Step 1 - Network Ports and Protocols

Your workstations, servers, network domain controllers, and applications need to validate the revocation status of the PIV certificates and all intermediate certificate authority (CA) certificates. In addition, the certificate chain path building may retrieve and download the intermediate CA certificates.

The validation occurs in real time (with some caching) and requires ensuring network traffic is open and available to the destination web services, ports, and protocols. Many U.S. federal agencies implement a layered network security model with demilitarized zones (DMZs), proxies, and Trusted Internet Connections (TICs) to monitor, defend, and protect the networks, applications and users.

Verifying and Troubleshooting

Non-accessible endpoints for the web services due to firewalls blocking access is a very common root cause for errors. If you encounter user errors including “Cannot validate” and similar domain controller errors, your first troubleshooting step should be to verify your network and access.

It is simple to begin troubleshooting if the web services endpoints are accessible or blocked by firewall rules. You have the basic four utility tools for troubleshooting:

• certutil (Microsoft)
• openssl
• nslookup
• tracert

For the typical network domain, certutil will be your best option to identify a number of possible root causes. There are many options available in the certutil utility tool, and two are covered here.

Export your public key and certificate for PIV Authentication to a .cer file (mypiv_auth.cer), and run the following command in a command line from workstation(s) and domain controller(s):

  certutil -verify -urlfetch mypiv_auth.cer >>verify_piv.txt

The text file output will include a full check against all options for CRLs, OCSP, intermediate certificates to verify a trust chain, and the root (COMMON). Review all items and ensure at least one successful verification message is included for each check. You may see errors for the LDAP verifications and these can be ignored if a CRL or OCSP check is successful.

There is also a graphical user interface to help perform these verification checks.

  certutil -v -url mypiv_auth.cer

The graphical user interface allows you to check OCSP, CRL, and AIA (intermediate certificate retrievals).

Web Services for Validating PIV Certificates

Revocation status is validated using using either Online Certificate Status Protocol (OCSP) or Certificate Revocation Lists (CRLs). To meet your initial network requirements, you should ensure the OCSP and CRL URLs included in your agency users’ PIV Credential Certificates are accessible from all workstations and domain controllers.

Lightweight Directory Application Protocol (LDAP) for retrieving information is not preferred and has been increasingly deprecated; therefore, LDAP is not included.

There are dozens of OCSP and CRL URLs for all issued PIV credentials. If you have users with PIV credentials from other agencies or partners, identifying all the URLs to verify against your network configurations will be more complex.

Web Services for the Federal Public Key Infrastructure

The Federal Common Policy Certificate Authority G2 (COMMON) is the root certificate authority and has web services to publish both certificate chains (p7b files) and CRLs for all intermediate certificate authorities which the root signs.

To enable communications with these Federal Common Policy Certificate Authority services, including those currently operational and any expansion, you should verify outbound communications to the base domain of http.fpki.gov. For example, a successful connection to http://repo.fpki.gov/fcpca/fcpcag2.crt will download a copy of the Federal Common Policy CA certificate.

You should consider allowing two protocols (ports): HTTP (80) and DNS (53). Although the web services for publishing CRLs are not currently served over HTTPS (443), you may want to allow HTTPS (443) to future proof for any expansion.

Step 2 - Domain Controllers

To use smart cards and PIV credentials for network authentication, all domain controllers need to have domain controller authentication certificates.

This page contains information on domain controller certificate profiles and issuing domain controller certificates.

Domain Controller Certificate Profiles

Domain controller certificates must be issued with a set of specific extensions and values. The certificate profile for each domain controller must meet the following requirements:

• The certificate Key Usage extension must contain:

        Digital Signature, Key Encipherment


• The certificate Enhanced Key Usage extension must contain:

        Client Authentication (1.3.6.1.5.5.7.3.2)
        Server Authentication (1.3.6.1.5.5.7.3.1)


• The certificate Subject Alternative Name extension must contain the Domain Name System (DNS) qualifier and fully qualified domain controller name. For example:

        DNS Name=controller1.intranet.agency.gov


• The certificate Subject Alternative Name must also contain the domain controller’s Global Unique Identifier (GUID) (i.e., for the “domain controller object”).

  • To determine the domain controller’s GUID, start Ldp.exe and locate the domain-naming context.

  • Double-click on the name of the domain controller whose GUID you want to view.

    The list of attributes for the domain controller object contains “Object GUID” followed by a long number. The number is the object GUID. For example:

        Other Name: 1.3.6.1.4.1.311.25.1 = ac 4b 29 06 bb d6 5d 4f e3 9c 4c ab c3 6a 55 d9


    The domain controller’s certificate must be installed in the domain controller’s local computer’s personal certificate store.

• It is also recommended to include a non-critical Security Identifier (ObjectSID) extention in your DC certificates, for example:

        1.3.6.1.4.1.311.25.2 = S-1-5-domain-516


Issue Domain Controller Certificates

U.S. federal civilian agencies have a variety of information security policies. These policies cover whether you should use a domain controller certificate issued from your agency’s local enterprise certification authority (CA) or whether the certificate must be issued from a CA managed and certified under the Federal Public Key Infrastructure (FPKI). Each agency’s information security policy should be followed.

It is not recommended to set up a local enterprise CA just to issue domain controller certificates without ensuring the proper management and security protections are enabled. Your Chief Information Security Officer (CISO) must have awareness and oversight established for the CA management.

Collaborate with your CISO or Information Security Office for a definitive answer and direction.

If you do have a local enterprise CA, here are some tips.

Step 3 - Trust Stores

Follow Step 3 - Distribute to Operating System from the distribute FCPCA configuration guide.

Step 4 - Account Linking

Account linking refers to the process of associating a certificate on a user’s PIV credential with their domain account.

Comparing altSecurityIdentities and User Principal Name

There are two account linking attributes to choose from:

• altSecurityIdentities (recommended)
• User Principal Name (UPN)

It’s not possible to configure a domain to use both altSecurityIdentities and User Principal Name mapping. You must choose one of these options and configure its use for all domain users.

altSecurityIdentities Approach

• Each PIV credential can be associated with more than one account.
  • This flexibility allows for the association of a single PIV credential certificate to an individual’s end-user and privileged user account(s).
• Users are presented with an additional field during network authentication to identify which account the user wants to access. This field is known as the User Name Hint.
  • The User Name Hint informs Windows which account the user is trying to log in to if the mapped certificate is associated with multiple accounts.
  • Entering a User Name Hint is optional if the user’s PIV Authentication certificate UPN matches their Windows logon name.
• You can choose from one of six options to map a certificate to a given account.
• There is more flexibility for accepting PIV credentials issued by other government agencies or partners, including PIV-Interoperable (PIV-I) credentials.

User Principal Name Approach

• Each PIV credential can only be associated with one account.
• The UPN value from the Subject Alternate Name in the PIV Authentication certificate is required.
• There is no flexibility for associating the PIV credential to separate privileged accounts.
• There is less flexibility for accepting PIV credentials issued by other government agencies or partners, including PIV-I credentials.

Transitioning from UPN Mapping to altSecurityIdentities Mapping

If you have a large network with many domains, you should carefully plan the migration from User Principal Name to the altSecurityIdentities account linking method.

There are three steps to implement altSecurityIdentities account linking:

1. Link the PIV Authentication Certificate
2. Enable User Name Hints
3. Disable User Principal Name Mapping

Option 1. Link the PIV Authentication Certificate

First, you need to link each user’s PIV Authentication certificate to their domain account(s). This is accomplished by populating data extracted from the user’s PIV Authentication certificate into their Active Directory record, specifically into the altSecurityIdentities attribute.

Adding altSecurityIdentities attributes will not break existing UPN account linking or cause smart card logon to fail. It’s possible to plan your transition carefully and to take your time populating the altSecurityIdentities attribute for domain users.

There are six altsecid mapping options to choose from; however, three of these are considered to be “weak” identifiers that will either need to be migrated to a “strong” identifier or policy tuble mappings will need to be implmented to allow for use of an Issuer/Subject altsecid.

Policy tuple mappings to accomodate some weak identifier mappings are available in Windows Server 2019 and later as of September 10th, 2024. Tuple mappings are defined via group policy, specifically Administrative Settings / System / KDC under an entry titled “Allow name-based strong mappings for certificates” wherein administrators can define three things to include:

1. Trusted issuing CA - identified by its certificate thumbprint, each tuple will be unique to each issuing CA thumbprint
2. Trusted certificate policy OID - ensures that the client certificate is issued acording to a certain policy or policies, and
3. Name matching - defines what field to extract from the certificate that meets the previous two conditions for correlation to AD user accounts, this will generally be UPN suffix and/or altsecid IssuerSubject

Note that if you authenticate PIV certificates from multiple issuing CAs you will require several registry entries with the tuple mapping to account for the uniqe thumbprints of each issuing CA.

The following examples provide a few options for various potential policy tuple values that can be used to identify a few types of certificate based network authentication credentials.

1. UPN only policy tuple for a standard internal PIV user (Entrust Managed Services SSP CA, PIV Authentication OID, Department of Health and Human Services UPN Suffix)

        19fea49c468760edce9600a9da9657b484734d24; 2.16.840.1.101.3.2.1.3.13; UPNsuffix=hhs.gov


2. Altsecid policy tuple for a priviledged administrator with an ALT token (Entrust Managed Services SSP CA, Common-Hardware Token, Issuer/Subject altsecid)

        19fea49c468760edce9600a9da9657b484734d24; 2.16.840.1.101.3.2.1.3.7; IssuerSubject


3. Altsecid policy tuple for an external PIV or dPIV user (NASA Operational CA, PIV Authentication and dPIV Authentication OIDs, Issuer/Subject altsecid)

        67ddd6f4be3b69568f591bf999db2ef3085f7c5bl, 2.16.840.1.101.3.2.1.3.13, 2.16.840.1.101.3.2.1.3.40; IssuerSubject


Identity certificates used for Windows logon can generally be found:

• On the smart card itself.
• By requesting the certificates directly from the smart card issuer (either the CA or RA).
• By exporting the certificates from a third party application in which the certificates are already registered.

Each of these options is discussed below.

Gather Certificate from Smart Card
To gather the certificate from the smart card using a Windows workstation, have the cardholder do the following:

1. Open the Start Menu, located in the bottom left corner of the screen.

2. Type command prompt.

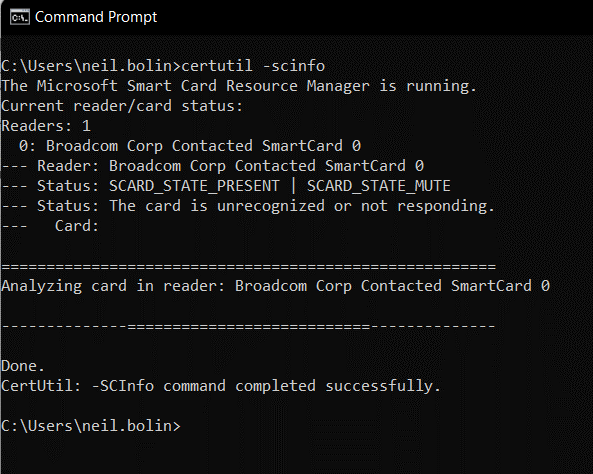

3. In the prompt, type certutil -scinfo.

4. Press Enter.

5. The cardholder will be prompted several times for a PIN, but a PIN is not required for this operation. Have the cardholder press cancel each time they are prompted for a PIN until they see the Certificate List.


6. Have the cardholder click Click here to view certificate properties. The appropriate certificate will list “Smart Card Logon” in the intended purposes on the General tab. If the certificate has this purpose listed, have the cardholder proceed to Step 7. Otherwise, have the cardholder close the certificate, click more choices on the Certificate List, click another certificate in the list, and click Click here to view certificate properties until the correct certificate has been identified.


7. Have the cardholder select the Details tab and then proceed with the steps below.

8. Click copy to file to start the certificate export wizard.

9. Click Next.

10. Click Next again to indicate that the cardholder does not wish to export the private key.

11. Click Next again to use the default DER encoding.

12. Click Browse to select where to save the certificate. Have the cardholder select a location that he or she has permission to save to, such as Desktop or Documents.

13. Enter a meaningful name for the certificate (such as the cardholder’s name or employee ID).

14. Click Save.

15. Click Next.

16. Click OK.

17. Click OK to close the Certificate Details window.

18. Click OK to close the Certificate List.

19. Close the command prompt.



20. Have the cardholder send the exported .cer file to your organization’s Network Administrator in a way that aligns with the organization’s security policies.


Request Certificates from the Smart Card Issuer
Your organization’s credential issuer may have a copy of certificates issued to current users. You will need to specifically request from the issuer the most recent valid identity certificates suitable for smart card logon. The issuer will produce these certificates in a variety of ways, based on the certification authority or the Card Management System in use.

Export Certificates from a Third Party System
Your organization may have already collected the relevant certificates as part of the enrollment process for a third party application, such as a FIPS 201-compliant PACS system. Depending on the system and configuration in use, you may be able to export your cardholders’ certificates from the database where they are enrolled. Speak with your PACS integrator to understand what options are available to you.

Methods for Linking the PIV Authentication Certificate

System administrators can leverage one of the approaches below to link PIV Authentication certificates with user accounts. Run these steps from a domain controller with elevated privileges.

A. Use the Active Directory Users and Computers Graphical User Interface
The following steps are useful if you only need to update a small number of user accounts:

• Start > Server Manager
• Tools > Active Directory Users and Computers
• View > Advanced Features
• Expand your domain to reveal the Users directory
• Right-click on the user whose certificate you’d like to map and select Name Mappings
• Click Add and browse to a local copy of the user’s PIV Authentication certificate
• Click Apply and then OK

B. Use Automation
If you are designing an automated process to transition users from Principal Name to altSecurityIdentities mapping, consider the following functionality:

• Load and process multiple certificates at once (for example, reading a directory of user certificates)
• Extract the UPN from each certificate and ensure a corresponding user record exists in Active Directory
• For certificates that contain a UPN that matches a record in Active Directory:
  • Extract and format the certificate Issuer and Subject attributes in preparation for publishing to Active Directory
  • Update the user’s Active Directory record with the altSecurityIdentities attribute and corresponding Issuer and Subject data
• For certificates that do not contain a UPN that matches a record in Active Directory:
  • Set aside for manual review (e.g., these users may be no longer affiliated with your organization)
• Evaluate accounts in Active Directory that do not contain an altSecurityIdentities attribute after process execution for manual review and further remediation

Option 2. Enable User Name Hints

You need to enable User Name Hints for your network domain. This will modify the logon prompts for Windows workstations and servers joined to the network domain. Your users will be prompted to provide both the PIV credential PIN value and a User Name Hint value.

For Windows Server 2012 and later:

• Computer Configuration > Administrative Templates > Windows Components, and then expand Smart Card.
• Select Allow User Name Hint

Management of smart card settings should be deployed using a group policy object for the domain.

Option 3. Disable User Principal Name Mapping

To transition from UPN mapping to altSecurityIdentities account linking, you will need to configure a registry setting on all domain controllers. Only configure the registry setting below once you have completed the above steps and are ready to disable UPN mapping.

• Key: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Kdc
• Name: UseSubjectAltName
• Type: DWORD
• Data (Value): 00000000

This setting tells your network domain I don’t always want to use the Subject Alternate Name values for my user certificates. More information on the setting is available here.

It’s possible to revert to UPN account linking by removing the registry setting above.

Use group policy objects or other centralized management options to manage registry options.

Step 5 - Group Policies and Enforcement

The U.S. federal government publishes the United States Government Configuration Baseline (USGCB) for use by Executive Branch agencies to promote uniform configurations for commonly used operating systems. The USGCB configuration guidelines for specific operating systems include references to some configurations related to smart card (PIV) logon and should be referenced first.

The information on this page is intended to answer questions and identify the most commonly used configuration options. For a full reference of options for each operating system, please refer to configuration guides published by other sources online.

Machine Based Enforcement Versus User Based Enforcement

There are two options for requiring users to use PIV credentials to authenticate to the network domain:

• Machine Based Enforcement (MBE)
• User Based Enforcement (UBE)

These options are controlled by group policy applied to either Machine or User objects in your network domain. Planning is required to move to full User Based Enforcement and agencies are often using a combination of both Machine and User enforcement in their deployments.

Impacts and considerations are identified to help you plan and execute according to your agency network and user needs.

Your applications impacted by User Based Enforcement are designed or deployed using:

1. Form Based or Basic Authentication
2. or LDAP simple binds

The user will be presented with the application form to enter a username and password and the user will no longer have the password.

You want to analyze your applications and identify which are configured to use your users’ network domain passwords. There are methods to fix the applications by enabling Kerberos, SPNEGO (web applications), direct x509 authentication (client certificate authentication), or the SAML and Open ID Connect (OIDC) protocols. These topics will be covered in the Applications section of the guides that are in-development and we invite all to contribute to them!

Defining the Policies for Machine Based Enforcement or User Based Enforcement

The setting to enforce PIV logon is controlled by scforceoption in your network domain user and workstation policies.

• Machine Based Enforcement is when you apply the scforceoption to a workstation or server object in your network domain.
• User Based Enforcement is when you apply the scforceoption to a user in your network domain.

This is the only difference when implementing the policy: which objects in your domain you apply the policy to.

You can set the policy option on a single user by checking the Smart Card is required for interactive logon check box in the user account properties. You can also apply this setting using group policy objects. When the scforceoption setting is applied, the SMARTCARD_REQUIRED flag is added to the UserAccountControl (UAC) and the DONT_EXPIRE_PASSWORD attribute is set to true.

Defining Kerberos Policies for Re-authentication

Although users can PIV authenticate to domain controllers, the client and the domain controller maintain those sessions using kerberos tickets.

Group policies can be configured by domain administrators to align with local security policies for maximum lifetimes of kerberos user tickets. This may cause users to be prompted to re-authenticate with their PIV when prompted with one of the following options:

• Windows Needs Your Current Credentials
• Please Lock this computer, then unlock it using your most recent password or smart card

These prompts happen when the kerberos ticket lifetime expires and a new authentication event is required. User is set to user based enforcement, which requires a new PKINIT event with the domain controller.

You can find additional information on configuring kerberos policies given the following reference documentation.

Step 6 - Network Tuning

You can tune the network domain settings to help you and your users have a better experience and reduce errors. This section highlights some of the common tuning configurations for network domain logon. There are additional tuning configurations and we encourage you to start with these first and contribute others.

You can also send questions to the ICAM Technology listserve (email to ICAM-COMMUNITY-TECH at listserv.gsa.gov) to ask your government colleagues for their additional tips and tricks!

Cached Logon Credential Limit

When a user authenticates to a Windows system, their logon credentials are cached to enable logon in the event the domain controller is unavailable. The United States Government Configuration Baseline (USGCB) for Windows 7 specifies that Interactive logon: Number of previous logons to cache (in case domain controller is not available) should be set to 2.

There are no required USGCB settings for Windows 8 or Windows 10.

You should configure the cached logon credential limit to be at least “2” and possibly more depending on the mission needs.

The Number of previous logons to cache can be modified in local or group policy in the following location Computer Configuration\Windows Settings\Security Settings\Local Policies\Security options

More information is available on Microsoft TechNet

CRL Retrieval Timeout Settings

By default, Windows will time out when downloading Certificate Revocation List(s) after 15 seconds. A number of CRLs in the government environment are large, greater than 20 MB in size, which will lead to the timeout happening. This example scenario can be common and a source of frustration to you and your users:

• The first or the 51st user will attempt to log on in the morning in a region
• The validity period and cache of the previous CRL will have expired on the domain controller
• The domain controller will attempt to download the large CRL file and will hit the timeout limit
• The user will receive an authentication failure (unable to log on)
• The user will be able to try again and be successful
• You will try to determine the root cause to diagnose the failures (i.e., chasing ghosts on the network)
• This process will repeat

You want to tune both the OCSP Response Caching Behavior setting and the CRL Retrieval Timeout Settings.

The default timeout value can be modified using local or group policy by modifying the Default URL retrieval timeout value found in the Certificate Path Validation Settings, Network Retrieval tab, located in Computer Configuration\Windows Settings\Security Settings\Public Key Policies

Consult these step-by-step instructions:  Manage Network Retrieval and Path Validation

OCSP Response Caching Behavior

By default, Microsoft Windows will retrieve and cache 50 OCSP Responses for any one issuing CA before switching to CRL mode. Depending on the size of the CRL, this may be a poor performance decision. For environments where workstations routinely interact with large CRLs, a large value may significantly reduce network bandwidth consumption. This value can be increased by setting the CryptnetCachedOcspSwitchToCrlCount DWORD value in the following registry key: HKEY_LOCAL_MACHINE\Software\Policies\Microsoft\SystemCertificates\ChainEngine\Config

Source:  Optimizing the Revocation Experience

Step 7 - Local Certification Authority

This page provides some tips for using a local certification authority (CA) to issue a domain controller certificate. This is for local Microsoft CAs. Other platforms may be used and have different procedures.

Prerequisites

• The server that hosts the CA must be joined to the domain.
• The CA should never reside on the same server(s) that are acting as domain controller(s).
• You must be an Enterprise Administrator in the domain to perform these steps.

Install CA Role

1. Log into the CA server as a member of the Enterprise Administrators group.
2. Open the Server Manager and click on Manage > Add Roles and Features.
3. Proceed through the Add Roles and Features Wizard options. Choose the following:
   Server Roles: Active Directory Certificate Services
   AD CS Roles Services: Certification Authority

4. On the Results page, click on Configure Active Directory Certificate Services on the destination server.
5. Proceed through the AD CS Configuration options. Choose the following values, as required:
   Role Service: Certification Authority
   Setup Type: Enterprise CA
   CA Type: Root CA
   Private Key: Create a new private key
   Cryptography: RSA#Microsoft Software Key Storage Provider, 2048 bit, SHA-256 6e
   CA Name: Use the naming convention: dc=[AD suffix], dc=[AD domain], cn=[certification authority name]
   (e.g., dc=gov, dc=[AgencyName], cn=[AgencyName] NPE CA1)
   Validity Period: 6 years
   Certificate Database: <your preference>


Configure Certificate Template for Domain Controller

The domain controller(s) certificate must contain valid information. These steps provide recommended options and settings.

1. Log into the CA server as a member of the Enterprise Administrators group.
2. Open the certificate template’s MMC snap-in (i.e., certtmpl.msc).
3. Right-click on the Domain Controller Authentication template. Then, click on Duplicate Template.
4. Under the Compatibility tab, modify the Compatibility Settings for both the CA and certificate recipients to the highest compatible version (e.g., Windows Server 2012 R2 or Windows 2008 R2).
5. Under the General tab, use these recommended settings:
   Template Name: <Your organization> - Domain Controller Authentication.
   Validity Period: 3 years.
   Renewal Period: 6 weeks.

6. Under the Cryptography tab, set these values:
   Minimum Key Size: 2048.
   Request Hash: SHA256

7. Open the CA console (i.e., certsrv.msc).
8. In the console tree, click on the [CA’s name].
9. In the details pane, double-click on Certificate Templates.
10. In the console tree, right-click on Certificate Templates. Then, click on New > Certificate Template To Issue.
11. Select and enable the certificate template that was created. Click on OK.

Auto-Enroll Domain Controllers Using Group Policy Object (GPO)

1. Log into a Domain Controller server as a member of the Enterprise Administrators group.
2. Open the GPMC: gpmc.msc
3. Within the appropriate GPO applied to the Domain Controllers, go to Computer Configuration\Policies\Windows Settings\Security Settings\Public Key Policies\
4. Configure Certificate Services Client – Auto-Enrollment with the following options:
   Configuration Model: Enabled.
   Renew Expired Certificates, Update Pending Certificates, Remove Revoked Certificates: Check_all checkboxes.
   Update Certificates That Use Certificate Templates: Check the checkbox.

5. Replicate the group policy. Use the command: gpupdate /force at the command line, or wait for the group policy to replicate based on your replication time and settings.
6. Open MMC.exe -> File -> Add/Remove Snap-in -> Certificates -> Computer account -> Local computer.

If successful, you will see a new domain controller certificate in the Certificate (Local Computer) -> Personal -> Certificates folder. At the Certificate Template tab, you will also see a certificate generated with the custom certificate template.

Step 8 - Authentication Assurance

When a user authenticates to your network and you’ve enabled Single Sign-on to applications inside your network domain, you need to know which of these authenticators was used:

• A username and password
• A PIV credential
• An alternate authenticator

You need to know the type of authenticator to implement increasingly granular authorization policies and to grant or deny a user access to information available from applications and shared network resources.

To grant a user access, based on the type of authenticator used, you can use a Windows Active Directory (AD) feature called Authentication Mechanism Assurance (AMA). AMA allows you to add a group membership identifier to the user’s Kerberos token.

AMA is available for Windows Server 2008 R2 domains and later versions.

Implementation

You can use this PowerShell script CertificateIssuanceOIDs.ps1 to import and set up a list of certificate issuance policies. This script:

• Contains a list of certificate issuance policy object identifiers (OIDs) used by U.S. federal government agencies
• Creates security groups with the same names as the policies
• Links the policies to the security groups

You can run the script with a few simple steps.

• You’ll need to specify the Group Distinguished Name (GroupDN) within the script. This targets where you want to create the security groups in your network directory:

  • CertificateIssuanceOIDs.ps1 -GroupDN \<group DN string>
  • For example: CertificateIssuanceOIDs.ps1 -GroupDN 'OU=Groups,OU=Administrators,DC=agency,DC=gov'

• After downloading this script, you may need to change the PowerShell script execution policy to execute the script or sign the script to execute it.

A sample output from the script is shown below:

  PS C:\> C:\AMA\Script\CertificateIssuanceOIDs.ps1
  -GroupDN 'ou=groups,ou=security,dc=agency,dc=gov'

  Created CN=id-fpki-common-authentication,ou=groups,
  ou=security,dc=agency,dc=gov
  2.16.840.1.101.3.2.1.3.13 -- Unknown ObjectId

  Localized name added to DS store.
  0: 1033,id-fpki-common-authentication
  CertUtil: -oid command completed successfully.

  Created CN=13.255922318A2AF32EC47D5B70735D4DB3,
  CN=OID,CN=Public Key Services,CN=Services,
  CN=Configuration,DC=agency,DC=gov
  AD AMA set for 2.16.840.1.101.3.2.1.3.13  id-fpki-common-authentication

Note:  If the GroupDN is not entered in the command line when executing the script, it will prompt for the input.

  PS C:\> C:\AMA\Script\CertificateIssuanceOIDs.ps1
  cmdlet ama-script.ps1 at command pipeline position 1
  Supply values for the following parameters:
  GroupDN: ou=groups,ou=security,dc=agency,dc=gov
==============================================
  GroupDN entered is ou=groups,ou=security,dc=agency,dc=gov

Testing

To test the output on your network domain, log in with your PIV credential and check the groups assigned.

• Authenticate with your PIV credential
• From the command line: C:\whoami /groups

  agency\id-fpki-common-authentication   Group  S-1-5-21-179144328
  1-1764752353-2202401552-1113
  Mandatory group, Enabled by default, Enabled group

Use Case Scenarios

Authentication Pass-Through to a Federation Service

A federal employee authenticates to the agency’s intranet using a PIV credential and attempts to access an application hosted by a different federal agency.

• The application is restricted to allow access only for users who have authenticated with a valid PIV Authentication certificate.
• All other users are denied access to the application.

This federal employee successfully accesses the other federal agency’s application with minimal inputs. The employee is successful because:

• The employee’s home agency has a Federation Service installed, and
• The employee’s home agency has integrated with the other agency’s Federation Service

During and after the employee’s logon to the network, the following steps were executed without the employee’s intervention:

1. The PIV authentication certificate is parsed
2. The certificate policy OID asserted allows Microsoft AD on the home agency’s network to assign the user to a group specifically for PIV authenticated users
3. The user’s session is granted a Kerberos ticket that includes the additional group membership
4. The user browses to the other federal agency’s application
5. The user’s browser is redirected to his/her home agency’s Federation Service
6. The Federation Service at the home agency finds the Kerberos ticket for the user’s session
7. A Security Assertion Markup Language (SAML) assertion is created by the Federation Service (This is a token translation.)
8. The SAML assertion includes the AD group membership information that identifies that this user authenticated with a PIV credential
9. The user’s browser is redirected back to the other federal agency’s application
10. The user is successfully authenticated with the valid SAML assertion
11. The other federal agency’s application is configured to allow access to only those users who have authenticated using a PIV credential

In this use case and steps, the user did not have to authenticate directly with a PIV credential to the other agency’s application. A federation model was used.

Authentication Pass-Through for Integrated Windows Authentication

A federal employee authenticates to his/her agency’s intranet using a PIV credential and attempts to access a local SharePoint site.

• The SharePoint site is restricted to allow access only for those users who have authenticated with a PIV Authentication certificate.
• All other users are denied access to the SharePoint site.

The federal employee successfully accesses the local SharePoint site.

During and after the employee’s logon to the network and attempt to access the SharePoint site, the following steps were executed without the employee’s intervention:

1. The PIV authentication certificate is parsed
2. The certificate policy OID asserted allows Microsoft AD on the home agency’s network to assign the user to a group specifically for PIV authenticated users
3. The user’s session is granted a Kerberos ticket that includes the additional group membership
4. The SharePoint site is configured to only allow access to only those users who have authenticated using a PIV credential

Other Considerations and References

Use the Windows Registry Editor to set the AMA Priority above Most Recently Issued Superior Certificate Heuristic:

• [HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\services\kdc]
• "ChainWithIssuancePolicyOIDs"=dword:00000001

Refer to the AMA Step-by-Step Guide to understand the implementation of AMA.

Troubleshooting PIV Logon

Within the federal enterprise, Windows smart card logon with a PIV card (PIV logon) is one method to satisfy Federal Information Security Management Act (FISMA) and National Institute of Standards and Technology (NIST) Risk Management Framework security controls for authentication. A PIV card enables Authenticator Assurance Level 3, two-factor authentication to a Windows desktop. Under normal conditions, this system is simple and easy for an end user to use. However, if this logon mechanism breaks, it can be difficult to troubleshoot logon and authentication errors. This page includes common symptoms and suggested steps to diagnose and solve these issues.

Logon Process Overview

The figure below, from the “Smart card sign-in flow in Windows” section of the Microsoft Certificate Requirements and Enumeration article, provides a detailed overview of how smart card logon works in supported versions of Windows.

For our use, this complex process is simplified into the following workflows:

Process Start

PIV logon begins at the client workstation. First, the system discovers smart card reader devices that are built into or attached to the workstation. Next, acceptable smart card logon certificates from any connected cards are provided to the Windows logon screen. In general, PIV cards are engineered to have one authenticate certificate marked eligible for smart card logon. However, in some instances, more than one certificate may have been inadvertently made eligible, meaning the user may first be asked to select the correct certificate for smart card logon. Conversely, the user may have a Facility Access Card (FAC) that omits access to any workstation. For more details on what is in use at your organization, speak with your agency’s credential issuer or Identity, Credential, and Access Management (ICAM) office.

Back to Process Overview

Card Selection and PIN Entry
Symption or Error: "Smart card icon is not displayed; user is not prompted for PIN."

When the logon screen appears, if the system has detected a smart card reader and an attached (inserted) smart card with suitable certificates, the smart card logon option is displayed and the user is prompted to enter a PIN. Use the information below to troubleshoot symptoms encountered with card selection before PIN entry.

---

Symptom

Smart card icon is not displayed; user is not prompted for PIN.

---

Possible Cause 1 - Reader or Card Not Detected

Windows does not detect either the reader or the card due to a software or hardware issue with the card reader.

Diagnosis

1. Ask the user to make sure that the PIV card is fully inserted in the reader.
2. If the smart card reader is an external USB device, ask the user to remove the device and try inserting it into a different USB port.
3. Ask the user to try rebooting their workstation.
4. Ask the user to try using their PIV with their PIN elsewhere.
5. If the issue persists through reboot, and the PIV with PIN works elsewhere, the smart card reader may need to be replaced or the workstation may need to be serviced.

Resolution

Replace the smart card reader if it is an external device. Otherwise, schedule workstation repair.

---

Possible Cause 2 - Card Damaged

The PIV is damaged.

Diagnosis

If faulty workstation hardware or software is ruled out, and the card does not work on other readers, the PIV may need to be replaced.

To confirm that the card is functional, you can use the Certutil Tool, listed on the Useful Tools page, on a known working Windows workstation.

On the client:

1. Log in to Windows using a password.
2. Open the Start Menu, located in the bottom left corner of the screen.
3. Type cmd.
4. Click Command Prompt, shown under Best Match.

5. In the command prompt, type certutil -scinfo and press Enter.

6. A functioning card will return information on the card type and reader, begin polling for keys and validating certificates, and prompt for PIN entry. If this is the case with the card you are testing, click Cancel and close out of the command prompt.

7. If the card is malfunctioning, certutil will recognize that a reader is connected and a card is present but will display an error and will not prompt for PIN entry.

Resolution

Replace the PIV card if necessary.

Back to Process Overview

Credential Authentication and Secure Connection to Logon Server
Symption or Error: "Signing in with a smart card isn’t supported for your account. For more information, contact your administrator."

After the user enters their PIN, Windows tries to unlock the card using the PIN entered. After the card has been unlocked, the workstation packages the user’s PIV authentication certificate and sends it to the logon server, also known as a domain controller. The workstation must be able to trust the domain controller so that the workstation can securely connect to it. Use the information below to troubleshoot symptoms encountered after the PIN is entered but before logon occurs.

---

Symptom

After PIN entry, the following error is displayed on the logon screen:
Signing in with a smart card isn’t supported for your account. For more information, contact your administrator.

---

Possible Cause - Domain Controller Certificate

A suitable domain controller authentication certificate is not installed on the domain controller.

Diagnosis

On the client:

1. Log in to Windows using a password.
2. Open the Start Menu, located in the bottom left corner of the screen.
3. Type event viewer.
4. Click Event Viewer, shown under Best Match.

5. On the left side of the Event View, expand Applications and Services Logs, Microsoft, Windows, and Security-Kerberos on the tree.

6. Click Operational.
7. On the right side of the window, under Actions, click Enable Log (skip this step if the option reads ”Disable Log”; the log is already enabled).

8. Log out of Windows.
9. Try having the user log in to their workstation again using their PIV.
10. Log in to Windows using a password.
11. Repeat Steps 2 through 6 to return to the Security-Kerberos log in Event Viewer.
12. Click in the center of the window where ”Error” is shown. The following log will appear.

Resolution

On the domain controller:

1. Log in as a Domain Administrator.
2. Open the Start Menu.
3. Type mmc.exe.
4. Click MMC, shown under Best Match.

5. If prompted by a User Account Control pop-up, click Yes.

6. Click the MMC window and press and hold Ctrl. Then press M and release both keys.
7. In the Add or Remove Snap-ins window, click the following:
1. From the Available Snap-ins on the left, click Certificates.
2. In the center of the window, click the Add button.
3. In the Certificates snap-in window, click Computer account. Then click Next.

8. In the Select Computer window, click Finish.

9. In the Add or Remove Snap-ins window, click OK.
10. On the left side of the MMC window, click the > symbol to expand these items on the tree:
1. Certificates (Local Computer)
2. Personal

11. Under Personal, right-click Certificates.

12. Click All Tasks.
13. Click Request New Certificate.
14. In the Certificate Enrollment window, click Next.
15. Click Next.
16. Click the box next to the Domain Controller Authentication template. If you do not see this, ask your CA Administrator to publish this template.

17. Click Enroll.
18. Click Finish.

Back to Process Overview

Name Mapping and PIV Validation
Symption or Error:
1. "An untrusted certification authority was detected while processing the smart card certificate used for authentication."
2. "The smart card used for authentication has been revoked."
3. "The system could not log you on. Your credentials could not be verified."

After the domain controller’s authentication certificate is used to make a secure link from the workstation to the domain controller, the certificate data for the user’s smart card is sent to the domain controller for validation. The domain controller does the following to validate the credential:

1. The domain controller looks up the user’s account in Active Directory (AD) using information found in the user’s PIV authentication certificate. This process is known as name mapping. More information about user name mapping can be found in the Account Linking Playbook
2. The certificate is sent to the Microsoft Crypto-API (CAPI) service running on the domain controller for path discovery and validation. CAPI performs basic certificate checks through Path Discovery and Validation (PDVal).
3. The domain controller checks its local copy of the Enterprise NTAUTH store for the presence of the issuing certification authority (CA) for the PIV authentication certificate. Steps for adding a certificate to this store can be found in the Trust Stores Playbook

Note: Certificate validation of the PIV authentication certificate for smart card logon only occurs on the individual domain controller processing the logon request. The client computer does not check the validity of the logon certificate. Other applications outside of Windows logon may perform certificate validation locally, so it may still be a good idea to have a valid path installed on your organization’s client computers. if you have multiple logon servers in your environment, only the one responding to the individual logon request performs validation. Therefore, it is important to maintain a consistent configuration across your domain controllers.

Use the information below to troubleshoot additional symptoms encountered after the PIN is entered, but before logon occurs.

---

Symptom

After PIN entry, one of the following errors displays on the logon screen:

1. An untrusted certification authority was detected while processing the smart card certificate used for authentication.

2. The smart card used for authentication has been revoked.

3. In some environments, under some circumstances, distribution of the root by GPO can sometimes cause PIV certificates to appear to be untrusted intermittently. Microsoft has published a description of the issue and identified a workaround.
</p> </div> </div>

---

Possible Cause 1 - Certificate Fails Path Discovery and Validation

The user’s PIV authentication certificate fails path discovery and validation on the domain controller.

Diagnosis

On the client:

1. Log in to Windows using a password.
2. Open the Start Menu, located in the bottom left corner of the screen.
3. Type cmd.
4. Click Command Prompt, shown under Best Match.

5. In the command prompt, type echo %logonserver% and press Enter.

6. The current domain controller being used for Windows logon is displayed. This is the best domain controller to check first for troubleshooting invalid smart card logon events.

On the domain controller indicated above:

1. Log in as a Domain Administrator.
2. Open the Start Menu.
3. Type mmc.exe.
4. Log in to Windows using a password.
5. Open the Start Menu, located in the bottom left corner of the screen.
6. Type event viewer.
7. Click Event Viewer, shown under Best Match.

8. On the left side of the Event View, click the > symbol to expand each of these items on the tree:
1. Applications and Services Logs
2. Microsoft
3. Windows
4. CAPI2
9. Click Operational.
10. On the right side of the window, under Actions, click Enable Log (skip this step if the option reads ”Disable Log”; the log is already enabled).

11. Log out of Windows on the client workstation.
12. Have the user try to log in using their PIV, taking note of the time. The error should be shown on the logon screen.
13. On the domain controller, still in Event Viewer, on the right pane, click Refresh.
14. New log events will be shown. Look for the events with an “Error” status and the task category “Build Chain.”
15. Click the Details tab. In the UserData section, look for the user’s name in the Certificate [subjectName] field. If you do not see the user’s name, continue scrolling through the list of events to find the next event with an “Error” status and the task category “Build Chain.” Using results filtering may help to narrow this list down.

16. Once you find the event, scroll down through the details. You will see sections that say “-ChainElement.” These indicate each of the certificates in the path that was built. Within each chain element, look again for the ”- Certificate [ subjectName ],” indicating which certificate is being checked, and below it, a ”- TrustStatus” with an ”- Error Status” which will give more details about the failing validation.

Example 1: A certificate in the path is revoked.

Example 2: The path does not build to a trust anchor

Example 3: The revocation status is unreachable, or the revocation status signature cannot be validated due to an invalid trust path.

Note: The error status in Example 3 will occur for any certificate lower in the path than the above Examples for 1 and 2. For example, if a trusted root cannot be found at the top of the path, no valid revocation status will be found for any certificate issued below the trusted root, including the issuing CA certificate and the end user’s PIV authentication certificate. This situation occurs because the revocation data cannot have its signature verified for the same reasons that the certificate itself cannot.

You can also use the PKI Interoperability Test Tool (PITT), listed on the Useful Tools page, to validate the certificate path on the logon server. The PITT Usage Guide contains procedures for using the tool.

Resolution

1. On the domain controller, work through any path validation issues identified in the above steps and examples. Keep in mind that that path building comes before validation and that a path is built from the bottom up. In this instance, the PIV authentication certificate chains to a trust anchor, such as Federal Common Policy G2. Ensure that the correct trust anchor for your organization’s PIV credentials is installed on every domain controller. If you also trust certificates from other agencies and organizations, the appropriate roots and cross-certificates may need to be installed to complete the path.
2. Find expired and revoked certificates that may be installed in your domain controller certificate store and delete them as appropriate. In a Windows environment, unexpected errors often result if you have duplicates of a certificate installed in a given store or have accidently installed an intermediate CA in the trusted root store or vice versa.
3. Lastly, you will need to allow outbound access over port TCP 80 from each domain controller to each of the CRL, OCSP, and AIA distribution points listed in the certificates in the path. For more information, see Path Discovery and Validation (PDVal).

Possible Cause 2 - CA Not in the NTAuth Store

1. Follow Steps 1 through 15 for diagnosing Possible Cause 1.
2. Confirm that there is no error logged for the task category ”Build Chain” with matching certificate subjectName for the user.
3. Look for an error logged for task category ”Verify Chain Policy” with matching certificate subjectName for the user.
4. Confirm that the result logged is ”A certification chain processed correctly, but one of the CA certificates is not trusted by the policy provider.”

Resolution

Follow the steps in the Trust Stores Playbook to add the appropriate issuing CA for the PIV card to the Enterprise NTAuth trust store.

---

Symptom

During smart card logon attempt, the following error is displayed on the logon screen:
The system could not log you on. Your credentials could not be verified.

---

Possible Cause 1

The incorrect certificate was selected for smart card logon.

Resolution 1

1. In the logon screen, select a different certificate from the sign-in options. Note: Logon certificates generally display an account name in the form of an email address or user principal name.
2. Try entering the PIN again.

Possible Cause 2

The identifiers listed in the Smart Card Logon certificate on the card cannot be matched to an AD account.

Resolution 2

Follow the suggestions in the Account Linking Playbook to ensure that the card identifier can be linked to the AD account. This may require User Principal Name (UPN) mapping, adding alternate security identifiers added to the AD record, or domain hinting.

Back to Process Overview

Client Logon and Caching

Once name mapping and PIV validation are complete, the domain controller sends a logon package to the client computer with the user’s domain permissions and a token that allows desktop logon for that user. If the user is permitted to log in to the computer, they will now be logged into their Windows desktop.

The first logon must always occur while the system has a network connection to the domain controller, whether it is directly attached to the organization’s network or via a VPN. After the first logon, if the Group Policy setting pictured below is set to a value greater than 0, the user’s logon token will be permanently cached by their workstation as long as the number of subsequent users to log in does not exceed this number.

If a future logon is attempted while the user’s workstation is disconnected from the organization’s network, and the logon token is cached, the workstation will only authenticate the PIV authentication certificate via PIN and, upon successful entry, will log the user into their desktop using their cached token and permissions. If the value is set to 0, caching does not occur and logon will only occur when the workstation is connected to the network and can communicate with a domain controller.

Back to Process Overview
